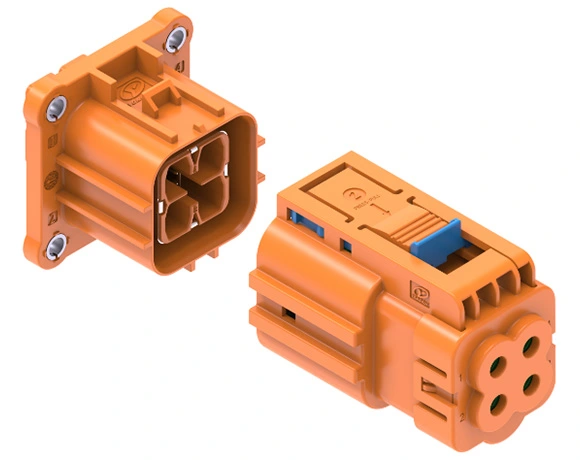

Ordering Information
| Ordering information (assembly) | ||||||
| Key position | A | B | A | B | A | B |
| Product Name | YGEV2-S4PA plug (2.5mm²) | YGEV2-S4PB plug (2.5mm²) | YGEV2-S4PA plug (4mm²) | YGEV2-S4PB plug (4mm²) | YGEV2-S4PA plug (6mm²) | YGEV2-S4PB plug (6mm²) |
| Part No. | 111000405829 | 111000405912 | 111000405830 | 111000405913 | 111000405831 | 111000405914 |
| Product Name | YGEV2-P4RA receptacle (2.5mm²) | YGEV2-P4RB receptacle (2.5mm²) | YGEV2-P4RA receptacle (4-6mm²) | YGEV2-P4RB receptacle (4-6mm²) | YGEV2-P4RA receptacle (4-6mm²) | YGEV2-P4RB receptacle (4-6mm²) |
| Part No. | 111000502861 | 111000502901 | 111000502862 | 111000502863 | 111000502862 | 111000502863 |
| Key position | A | B | ||||
| Product Name | YGEV2-S4PA plug (2×4mm²+2× 6mm²) | YGEV2-S4PB plug (2×4mm²+2× 6mm²) | ||||
| Part No. | ||||||
| Plug terminal name | YGEV2-P4RA receptacle (4- 6mm²) | YGEV2-P4RB receptacle (4- 6mm²) | ||||
| Plug terminalnumber | 111000502862 | 111000502863 | ||||
| Ordering information (assembly) | Ordering information (parts details, can be purchased separately) | |||||
| Product Name | Part No. | Qty | Wiring specifications | Diagram (reference) | ||

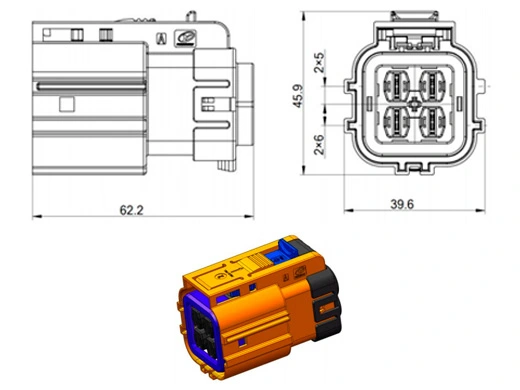

| YGEV2-S4PA plug (2.5mm²) | 111000405829 | YGEV2-S4PA plug assembly | 112010106035 | 1 | / |  |

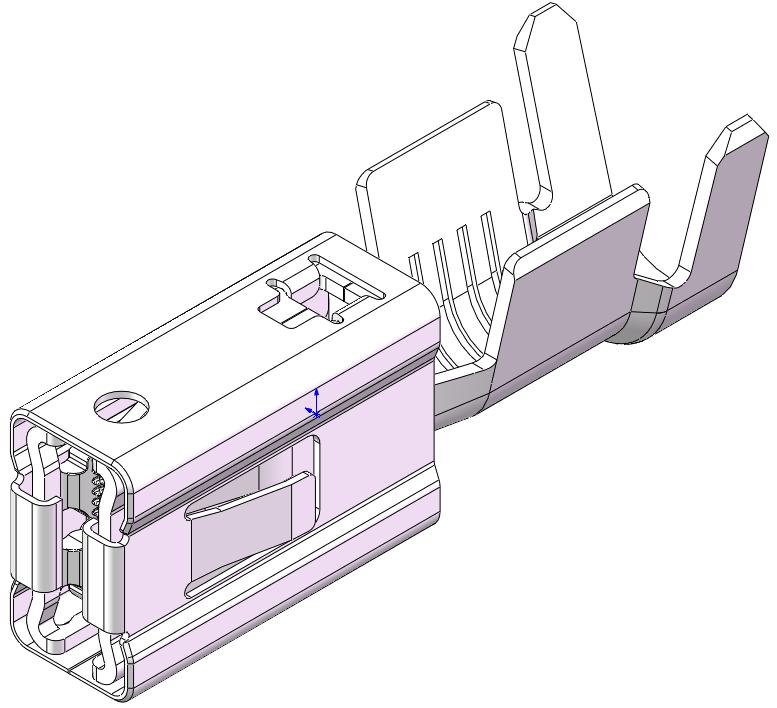

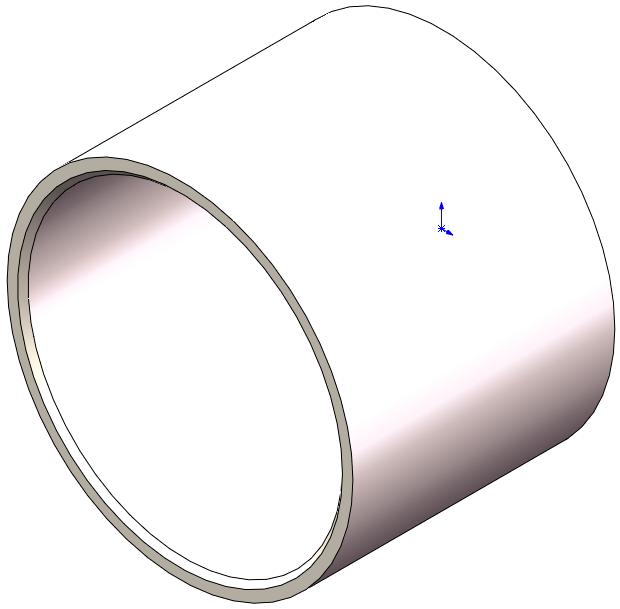

| 5.8*0.8 power socket | 110010400999 | 4 | 2.5mm² (GB) Φ6.1 (0, -0.6) mm |  | ||
| YG1174A1 inner casing | 114022500399 | 4 |  | |||
YG1467 shielding part-outer-4 | 114022500495 | 4 |  | |||

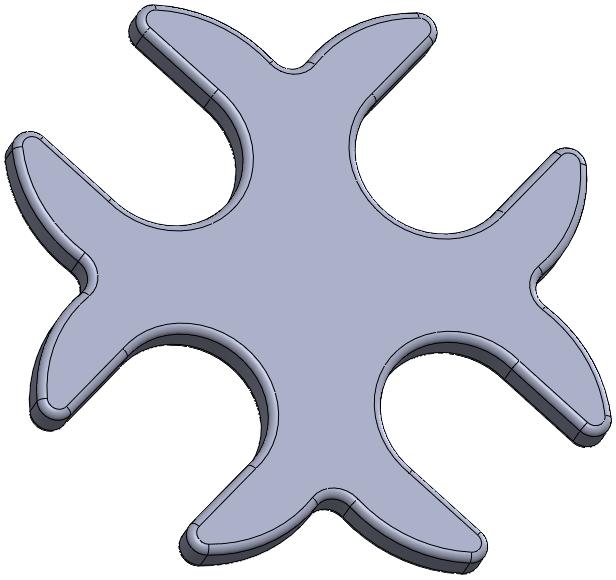

| YGEV2 baffle-TPA-4-2.5 | 114019801813 | 1 |  | |||
| YGEV2-4 sealing body-2.5 | 114050501953 | 1 |  | |||

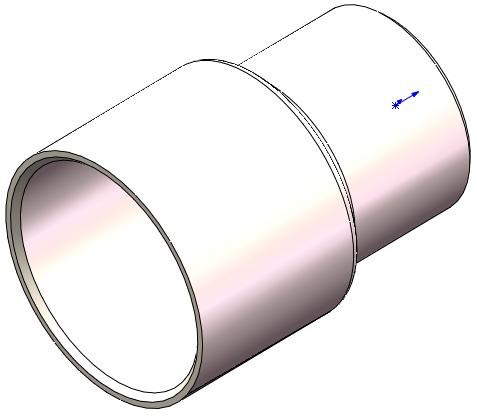

| Φ6.1 tail cover (black) -4-2.5 | 114069806339 | 1 |  | |||
YGEV2-S4PA plug (4mm²) | 111000405830 | YGEV2-S4PA plug assembly | 112010106035 | 1 | / | |
| 5.8×0.8socket (4~6mm² ) | 501021401790 | 4 | 4mm² (LV216) Φ5.8 (0, -0.5) mm | | ||
YG1467 shielding part-inner-4 | 114022500492 | 4 | | |||
YG1467 shielding part-outer-4 | 114022500495 | 4 | | |||

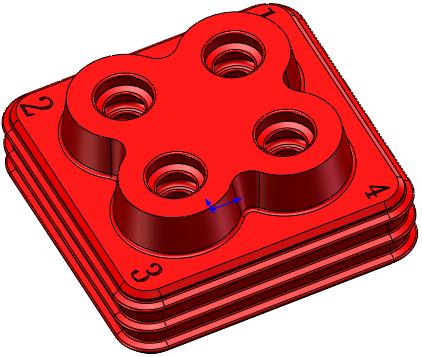

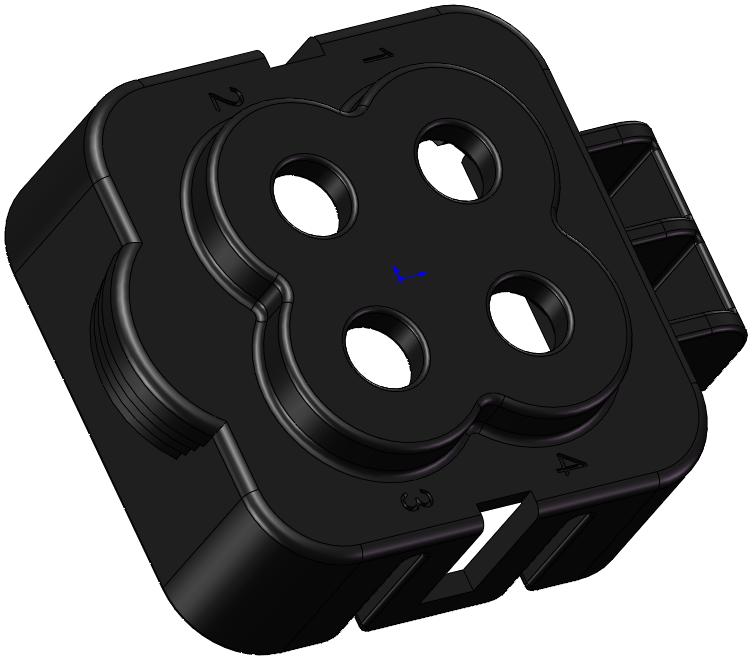

YG1174B Power Terminal Block-4 Square (216) | 115980034302 | 1 |  | |||
| YGEV2-4 Sealing Body-4 | 114050501954 | 1 |  | |||
| Φ5.8 tail cover (black)-4-4 | 114069806344 | 1 | | |||
| Ordering information (assembly) | Ordering information (parts details, can be purchased separately) | |||||
| Product Name | Part No. | Qty | Wiring specifications | Diagram (reference) | ||
YGEV2-S4PA plug (6mm²) | 111000405831 | YGEV2-S4PA plug assembly | 112010106035 | 1 | / | |
| 5.8×0.8socket (4~6mm² ) | 501021401790 | 4 | 6mm² (LV216) Φ6.5 (0, -0.5) mm | | ||
| YG1467 shielding part-inner-6 | 114022500494 | 4 | | |||
| YG1467 shielding part-outer-6 | 114022500496 | 4 | | |||
| YG1174B Power Terminal Block - 6 Square (216) | 115980034301 | 1 | | |||
| YGEV2-4 sealing body-6 | 114050501955 | 1 |  | |||
| Φ6.5 tail cover (black)-4-6 | 114069806345 | 1 | | |||
| YGEV2-S4PA plug (2×4mm²+2× 6mm²) | YGEV2-S4PA plug assembly | 112010106035 | 1 | / | | |
| 5.8×0.8socket (4~6mm² ) | 501021401790 | 4 | 4mm² (LV216) Φ5.8 (0, -0.5) mm 6mm² (LV216) Φ6.5 (0, -0.5) mm | | ||
| YG1467 shielding part-inner-6 | 114022500494 | 2 | | |||
| YG1467 shielding part-outer-6 | 114022500496 | 2 | | |||
| YG1467 shielding part-inner-4 | 114022500492 | 2 | | |||
| YG1467 shielding part-outer-4 | 114022500495 | 2 | | |||
| YG1174B Power Terminal Block - 6 Square (216) | 115980034301 | 1 | | |||
| YGEV2-4 sealing body-4-6 | 114050502198 | 1 | ||||
φ5.8 tail cover (black)-4 (4-6) | 114069806277 | 1 | | |||
| Ordering information (assembly) | Ordering information (parts details, can be purchased separately) | |||||
| Product Name | Part No. | Qty | Wiring specifications | Diagram (reference) | ||

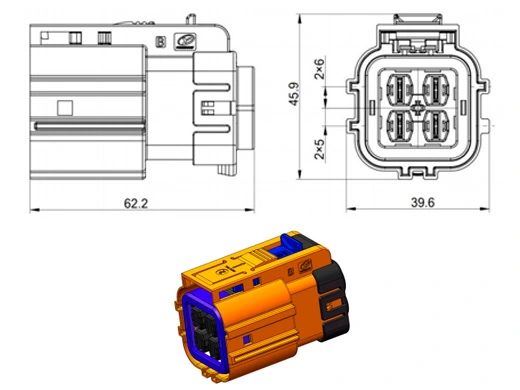

| YGEV2-S4PB plug (2.5mm²) | 111000405912 | YGEV2-S4PB plug assembly | 112010106501 | 1 | / | |
| 5.8*0.8 power socket | 110010400999 | 4 | 2.5mm² (GB) Φ6.1 (0, -0.6) mm | | ||
| YG1174A1 inner casing | 114022500399 | 4 | | |||
| YG1467 shielding part-outer-4 | 114022500495 | 4 | | |||
| YGEV2 baffle-TPA- 4-2.5 | 114019801813 | 1 | | |||
| YGEV2-4 sealing body-2.5 | 114050501953 | 1 | | |||
| Φ6.1 tail cover (black) -4-2.5 | 114069806339 | 1 | | |||
YGEV2-S4PB plug (4mm²) | 111000405913 | YGEV2-S4PB plug assembly | 112010106501 | 1 | / | |
| 5.8×0.8socket (4~6mm² ) | 501021401790 | 4 | 4mm² (LV216) Φ5.8 (0, -0.5) mm | | ||
| YG1467 shielding part-inner-4 | 114022500492 | 4 | | |||
| YG1467 shielding part-outer-4 | 114022500495 | 4 | | |||
| YG1174B Power Terminal Block - 4 Square (216) | 115980034302 | 1 | | |||
| YGEV2-4 Sealing Body-4 | 114050501954 | 1 | | |||
| Φ5.8 tail cover (black)-4-4 | 114069806344 | 1 | | |||
| Ordering information (assembly) | Ordering information (parts details, can be purchased separately) | |||||
| Product Name | Part No. | Qty | Wiring specifications | Diagram (reference) | ||
| YGEV2-S4PB plug (6mm²) | 111000405914 | YGEV2-S4PB plug assembly | 112010106501 | 1 | / | |
| 5.8×0.8socket (4~6mm² ) | 501021401790 | 4 | 6mm² (LV216) Φ6.5 (0, -0.5) mm | | ||
| YG1467 shielding part-inner-6 | 114022500494 | 4 | | |||
| YG1467 shielding part-outer-6 | 114022500496 | 4 | | |||
| YG1174B Power Terminal Block - 6 Square (216) | 115980034301 | 1 | | |||
| YGEV2-4 sealing body-6 | 114050501955 | 1 | | |||
| Φ6.5 tail cover (black)-4-6 | 114069806345 | 1 | | |||
| YGEV2-S4PB plug (2×4mm²+2× 6mm²) | YGEV2-S4PB plug assembly | 112010106501 | 1 | / | | |
| 5.8×0.8socket (4~6mm² ) | 501021401790 | 4 | 4mm² (LV216) Φ5.8 (0, -0.5) mm 6mm² (LV216) Φ6.5 (0, -0.5) mm | | ||
| YG1467 shielding part-inner-6 | 114022500494 | 2 | | |||
| YG1467 shielding part-outer-6 | 114022500496 | 2 | | |||
| YG1467 shielding part-inner-4 | 114022500492 | 2 | | |||
| YG1467 shielding part-outer-4 | 114022500495 | 2 | | |||
| YG1174B Power Terminal Block - 6 Square (216) | 115980034301 | 1 | | |||
| YGEV2-4 sealing body-4-6 | 114050502198 | 1 | ||||
φ5.8 tail cover (black) -4 (4-6) | 114069806277 | 1 | | |||
| Ordering information (assembly) | Ordering information (parts details, can be purchased separately) | |||||
| Product Name | Part No. | Qty | Wiring specifications | Diagram (reference) | ||

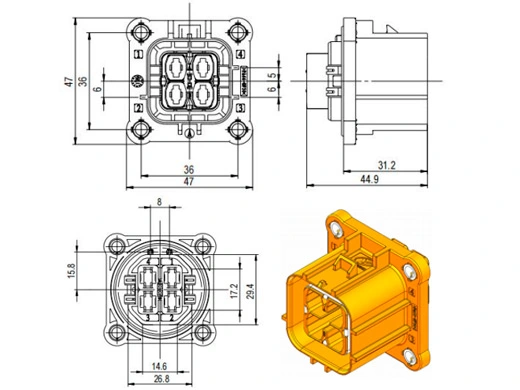

| YGEV2-P4RA receptacle (2.5mm²) | 111000502861 | YGEV2-P4RA receptacle assembly | 112020106828 | 1 | / |  |
| 5.8×0.8 pin (2.5mm²) | 110010400760 | 4 | Φ3.5±0.2mm (2.5mm² ) |  | ||
| 0.63×0.63 pin | 110010401011 | 2 | Φ1.3±0.2mm (0.35mm² ) |  | ||
| YGEV2-P4RA receptacle (4-6mm²) | 111000502862 | YGEV2-P4RA receptacle assembly | 112020106828 | 1 | / |  |
| 5.8×0.8 pin (4~ 6mm²) | 501021401626 | 4 | Φ4.5±0.2mm (4mm² ) Φ4.9±0.2mm（6mm² ） |  | ||
| 0.63×0.63 pin | 110010401011 | 2 | Φ1.3±0.2mm (0.35mm² ) |  | ||

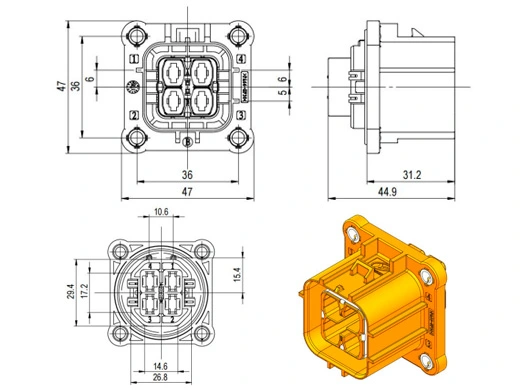

| YGEV2-P4RB receptacle (2.5mm²) | 111000502901 | YGEV2-P4RB receptacle assembly | 112020107248 | 1 | / | |
| 5.8×0.8 pin ( 2.5mm² ) | 110010400760 | 4 | Φ3.5±0.2mm (2.5mm² ) | | ||
| 0.63×0.63 pin | 110010401011 | 2 | Φ1.3±0.2mm (0.35mm² ) | | ||
| YGEV2-P4RB receptacle (4-6mm²) | 111000502863 | YGEV2-P4RB receptacle assembly | 112020107248 | 1 | / | |
| 5.8×0.8 pin (4~ 6mm² ) | 501021401626 | 4 | Φ4.5±0.2mm (4mm² ) Φ4.9±0.2mm（6mm² ） | | ||
| 0.63×0.63 pin | 110010401011 | 2 | Φ1.3±0.2mm (0.35mm² ) | | ||
Technical Data
| Basic Information | |
| PIN distance | 10mm |
| Number of cores | 4pin |
| Cable specifications | 2.5mm²/4mm²/6mm² |
| Outlet direction | 180° |
| Electrical properties | |
| Rated voltage | 1000 V (power), 24 V (signal) |
| Rated current | 20A (2.5mm² ), 30A (4mm² ), 40A (6mm² ) |
| Withstand voltage | 3000 V (power), 1000 V (signal) (50Hz AC normal) |
| Insulation resistance | ≥100MΩ (power/signal) (1000V DC) |
| HVIL (Y/N) | Y |
| Shield (Y/N) | Y |
| Mechanical properties | |
| Mechanical life | ≥50 times |
| Vibration level | S2 (LV214) |
| Environmental resistance | |
| Operating temperature | -40℃～+125℃ |
| Protection level | IP67&IP6K9K (header plug-in) |
| Relative humidity | 95% (at 40°C) |
| Salt spray level | 96h |
| Altitude | ≤4000m |
| Material/Coating/Appearance |
| See Parts Drawing |
| Standards and Certification | |
| Flame retardant grade | UL94 V-0 (plastic), HB (rubber) |
| Environmental requirements | RoHS 2.0 |
| Implementation Standards | USCAR 37 |

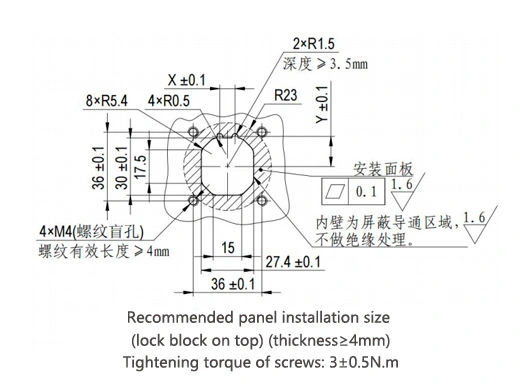

Installation Introduction
| Special tools | |
| Removal tools | Power pin removal auxiliary tool (532031201008) Power socket removal aid tool (532031201010) Signal pin removal auxiliary tool (532031201009) |
| Needle feeding tool | / |
| Crimping tools | / |
| Other tools | / |
| Packaging Storage/Transportation Instructions | |
| Storage requirements | Contact parts (gold-plated, silver-plated) must be stored separately, kept neat, clean and ventilated. The storage environment should be controlled at a humidity of ≤60% and a temperature of 5 ~ 30°C. Reference shelf life 6 months |
| Transshipment requirements | During packaging, transportation, transfer, production and assembly, the terminals should be protected from collision, contact with corrosive gases and liquids, and direct contact with hands, etc., to ensure that the terminal contact surface is in good condition. |
