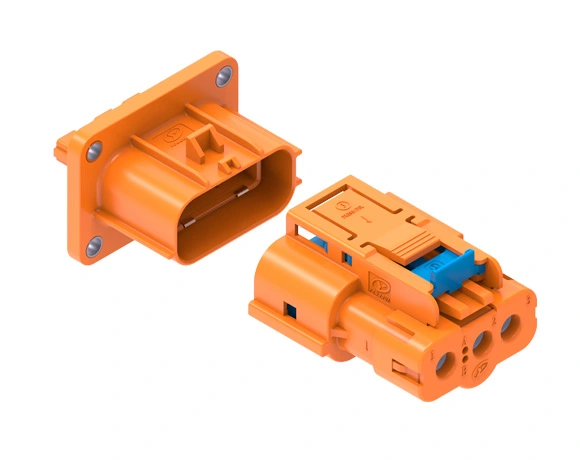

This product can achieve 360-degree full shielding;
This product can realize secondary interlocking and unlocking;
This product has a delayed high voltage interlocking function;
The key positions at both ends use 4 different combinations to prevent wrong insertion;
The connection between the plug and the receptacle is straight-insertion locking;
Plug and receptacle adopt terminal crimping.
Ordering Information
| Ordering Information | |||||
| Key Position | Ⅰ | Ⅱ | III | IV | |

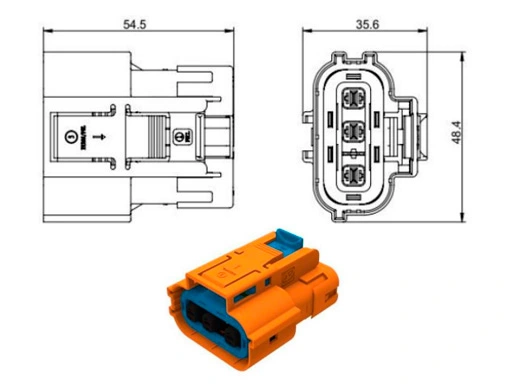

| Product Name | YGC1017-EV-S3P plug | YGC1017-EV-S3PB plug | YGC1017-EV-S3PC plug | YGC1017-EV-S3PD plug | |
| Part No. | 112010102206 | 112020102603 | 112010103470 | 112010103471 | |

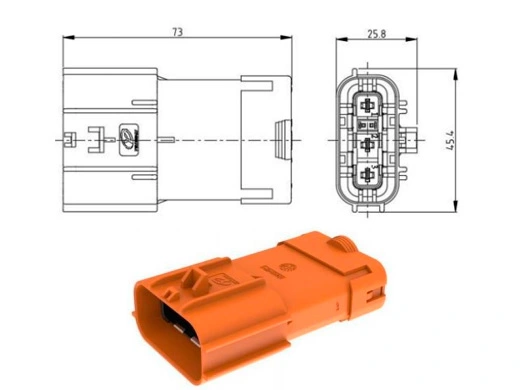

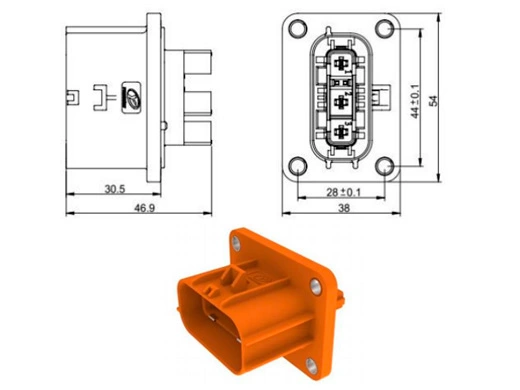

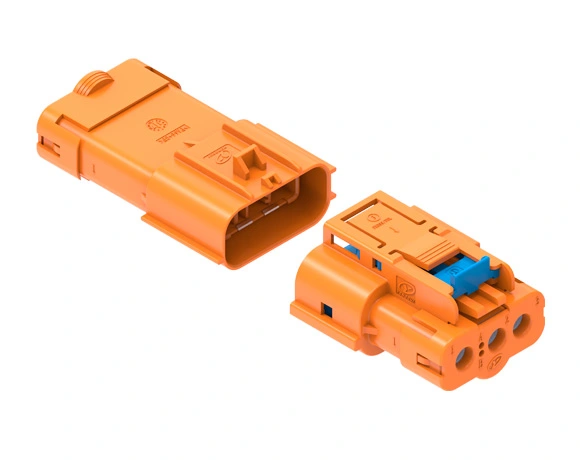

| Product Name | YGC1017-EV-P3R receptacle | YGC1017-EV-P3RA receptacle (moveable receptacle) | YGC1017-EV-P3RB receptacle | YGC1017-EV-P3RC receptacle | YGC1017-EV-P3RD receptacle |
| Part No. | 112020102439 | 112020102876 | 112020102602 | 112020103808 | 112020103809 |
| ordering information (pinhole parts, purchased separately) | |||
| Corresponding plug&receptacle | Plug | Receptacle | |
| Product Name | YG939 power socket | YG939 power pin | YG939 signal socket (choose one) |
| Part No. | 501021400357 | 501021400216 | 501021600128/501021401859 |
| Wiring specifications | 2.5mm²/Φ5.8±0.3mm (shielded cable) | 2.5mm²/Φ3.5±0.2mm (unshielded cable) | 0.5mm²/Φ1.5±0.2mm |
| Diagram (reference) |  |  |  |
Technical Data
| Basic Information | |
| PIN distance | / |
| Number of cores | 3pin |
| Cable specifications | Plug end: 2.5mm²/Φ5.8±0.3mm (shielded cable) receptacle end: Power: 2.5mm²/Φ3.5±0.2mm (unshielded cable) Signal: 0.5mm²/Φ1.5±0.2mm |
| Outlet direction | 180° |
| Electrical properties | |
| Rated voltage | 800 V (power), 24 V (signal) |
| Rated current | 16A (2.5mm²) |
| Insulation resistance | ≥100MΩ (power/signal) (1000V DC) |
| Withstand voltage | 3000 V (power), 1000 V (signal) (50Hz AC normal) |
| Contact resistance | ≤5mΩ (power component), ≤10mΩ (signal component) |
| HVIL (Y/N) | Y |
| Shield (Y/N) | Y |
| Mechanical properties | |
| Mechanical life | ≥50 times |
| Vibration | QC/T417.1-2001 4.11 |
| Environmental resistance | |
| Operating temperature | -40℃～+125℃ |
| Relative humidity | 95% (at 40°C) |
| Salt spray level | 48h |
| Protection level | IP67&IP6K9K(header plug-in) |
| Altitude requirements | Below 4000m |
| Material/Coating/Appearance |
| See Parts Drawing |
| Standards and Certification | |
| Flame retardant grade | UL94 V-0 (plastic), HB (rubber) |
| Environmental requirements | RoHS 2.0 |
| Implementation Standards | QC/T 1067.1 |

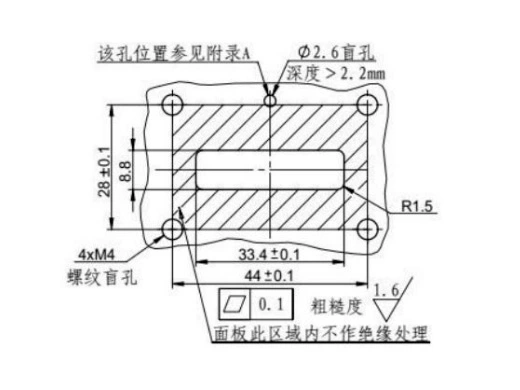

Installation Introduction
| Special tools | |
| Removal tools | power socket: GZ939-01-01-00 Removal tool Power pin: RTSCC-04 (2.8×0.8) removal tool Signal terminal: GZ939-02-03-00 Disassembly tool |
| Needle feeding tool | / |
| Crimping tools | / |
| Other tools | / |
