Zhejiang Yonggui Electric Equipment Co., Ltd.

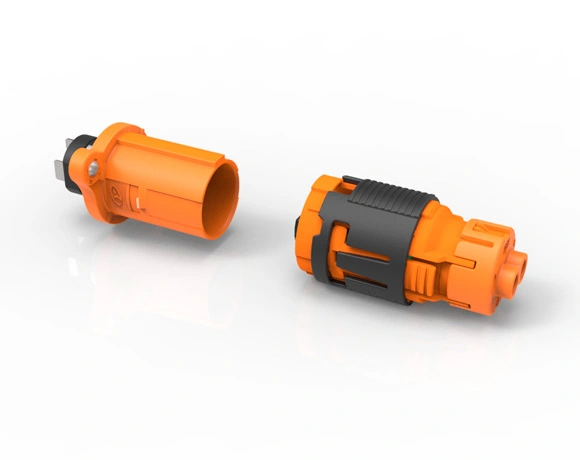

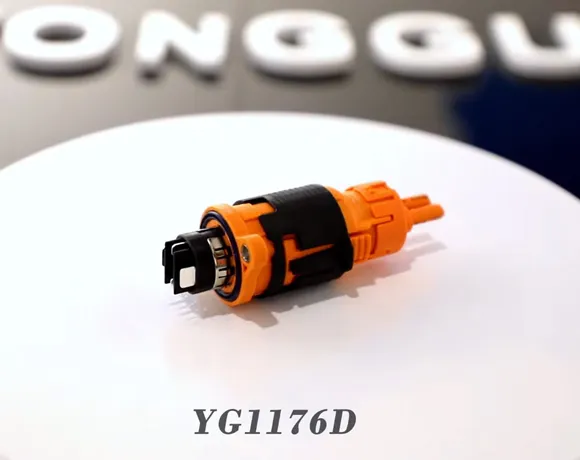

YG1176D-2pin Series Electrical Connectors

  • The product can achieve 360-degree full shielding;
  • The product can realize secondary interlocking and unlocking;
  • The product has high voltage interlock function;
  • With anti-foolproof key position to realize the function of preventing wrong insertion;

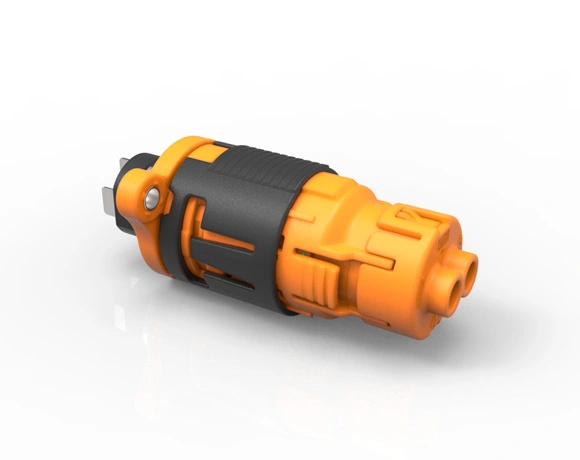

  • The connection between the plug and the receptacle is straight-insertion locking.

The Details of YG1176D-2pin Series Electrical Connectors

The Details of YG1176D-2pin Series Electrical Connectors

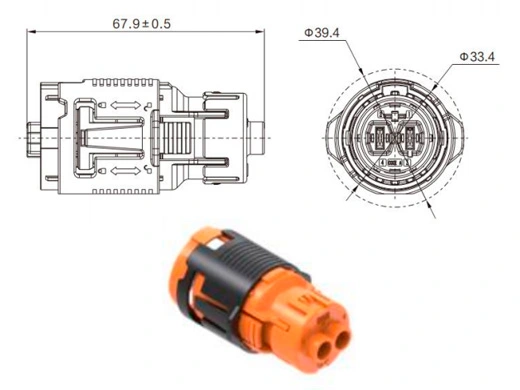

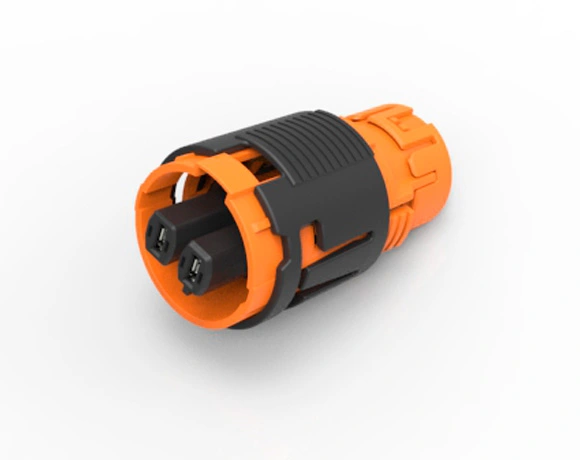

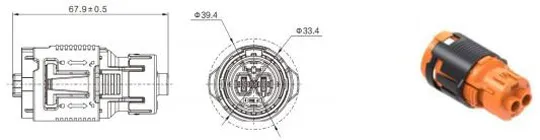

YGC1176D-EV-S(2+2)P Plug assembly appearance (tolerance not specified: ±0.5)
The Details of YG1176D-2pin Series Electrical Connectors

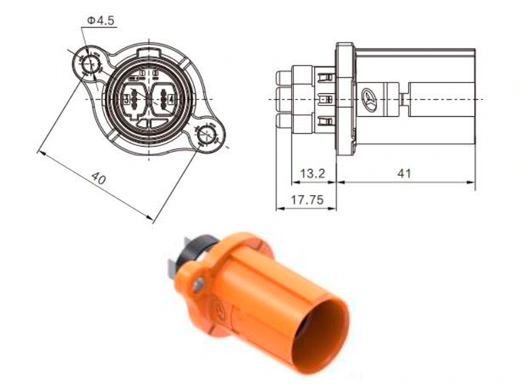

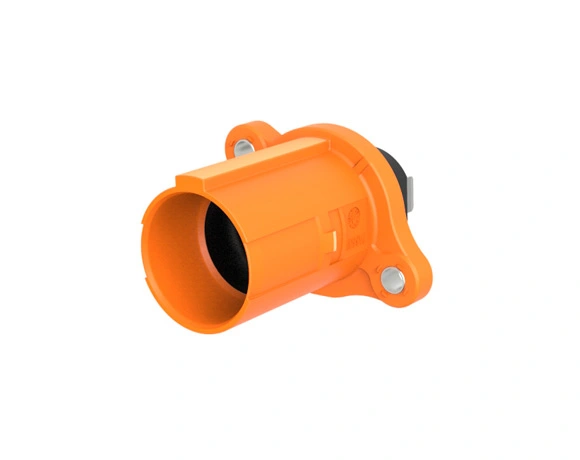

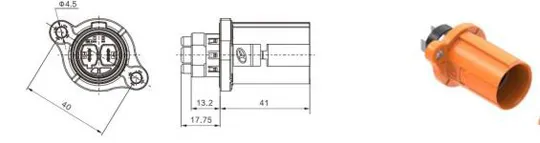

YGC1176D-EV-P(2+2)RH receptacle assembly appearance (tolerance not specified: ±0.5)
The Details of YG1176D-2pin Series Electrical Connectors

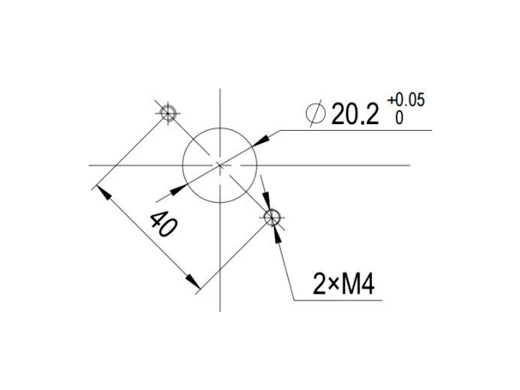

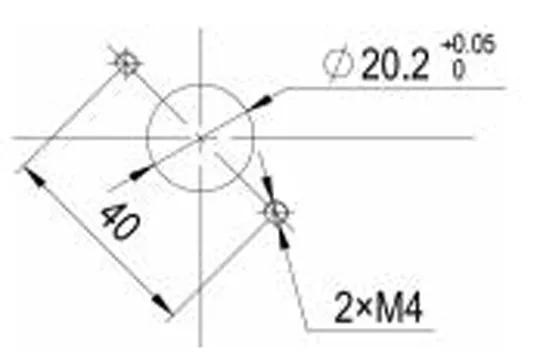

YGC1176D-EV-P(2+2)RH receptacle opening dimensions (tolerance not specified: ±0.1)

Specifications of YG1176D-2pin Series Electrical Connectors

  • Ordering Information


Ordering information (assembly)
Key positionI
Product NameYGC1176D-EV-P(2+2)RH receptacleYGC1176D-EV-P(2+2)RHA receptacle
Part No.112040106758111000502855
Product NameYGC1176D-EV-S(2+2)P plug
Part No.112030106654


Ordering information (pinhole parts, purchased separately)
Product Name04-6.3×0.8-T40~T60T receptacle (without waterproof plug)
Part No.501021401627
Wiring specifications4mm² -6mm²
Diagram (reference)ev-inter-connection.jpg


Ordering information (tail accessories, purchased separately)
Product NamePart No.QtyWiring
specifications
Diagram (reference)
YG1467 Shielding-Inner-411402250049224mm² (LV216)YG1467 Shielding-Inner-4
YG1467 Shielding-External-41140225004952YG1467 Shielding-External-4
YG1467 Shielding-Inner-611402250049426mm² (LV216)YG1467 Shielding-Inner-6
YG1163B Shielding sleeve1140226002532YG1163B Shielding sleeve
φ6 tail cover assembly11399000150214mm²-6mm² (LV216)φ6 tail cover assembly
1φ6 tail cover assembly
1φ6 tail cover assembly


  • Technical Data


Basic Information
PIN distance8.6mm
Number of cores2pin
Cable specifications6mm²(φ6.0-φ6.5), 4mm²(φ5.3-φ5.8)
Outlet direction180°


Electrical properties
Rated voltage1000 V (power), 24 V (signal)
Rated current30A (4mm²), 40A (6mm²)
Withstand voltage3000 V (power), 1000 V (signal) (50Hz AC normal)
Insulation resistance≥2000 MΩ (power), ≥1000 MΩ (signal) (normal)
HVIL (Y/N)Y
Shield (Y/N)Y


Mechanical properties
Mechanical life≥50 times
Vibration levelV2(LV215)


Environmental resistance
Operating temperature-40℃~+125℃
Protection levelIP67&IP6K9K IPXXB( header plug-in )
Relative humidity95% (at 40°C)
Altitude≤4000


Material/Coating/Appearance
See Parts Drawing


Standards and Certification
Flame retardant gradeUL94 V-0
Environmental requirementsRoHS 2.0
Implementation StandardsQC/T 1067.1, GB/T 30038, USCAR 37, USCAR 2


  • Installation Introduction


Special tools
Removal tools/
Needle feeding tool/
Crimping tools/
Other Tools/


  • Store


Packaging Storage/Transportation Instructions
Storage
requirements
Contact parts (gold-plated, silver-plated) must be stored separately, kept neat, clean and ventilated. The storage environment should be controlled at a humidity of ≤60% and a temperature of 5 ~ 30°C. Reference shelf life 6 months
Transshipment requirementsDuring packaging, transportation, transfer, production and assembly, the terminals should be protected from collision, contact with corrosive gases and liquids, and direct contact with hands, etc., to ensure that the terminal contact surface is in good condition.
