Zhejiang Yonggui Electric Equipment Co., Ltd.

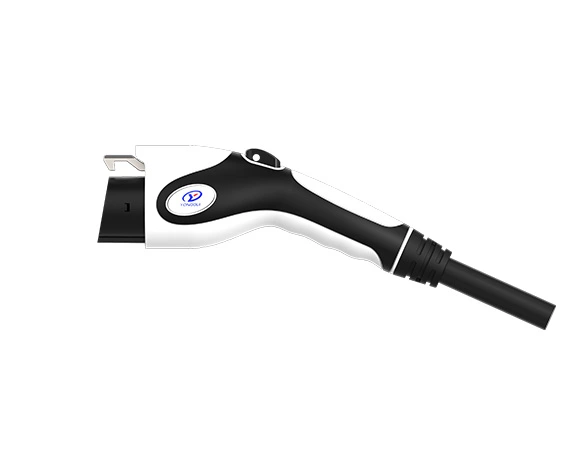

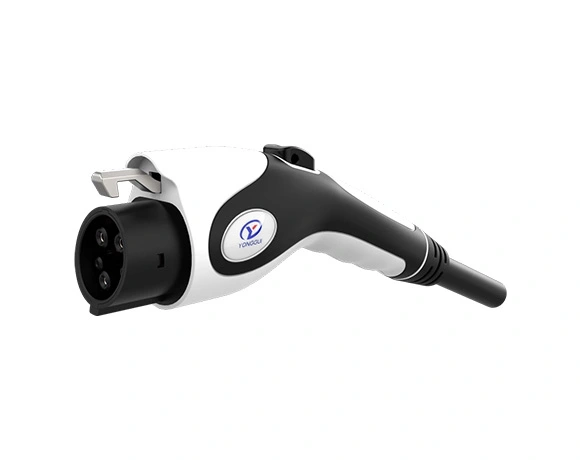

AC Vehicle Connector Type1

  • Comply with UL2251 requirements;

  • Passed UL certification;

  • This type of charging connectors is ued for AC charging, applicable to AC charging pile of corresponding standard in North America.

The Details of AC Vehicle Connector (Type1)

The Details of AC Vehicle Connector (Type1)

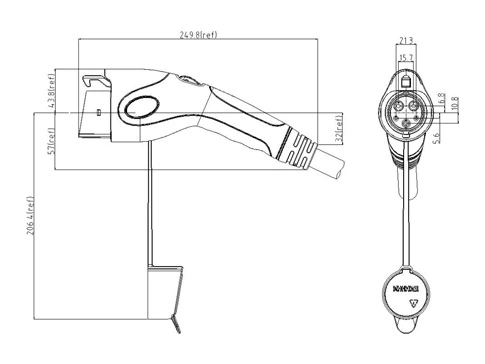

Overall dimensions

The Details of AC Vehicle Connector (Type1)

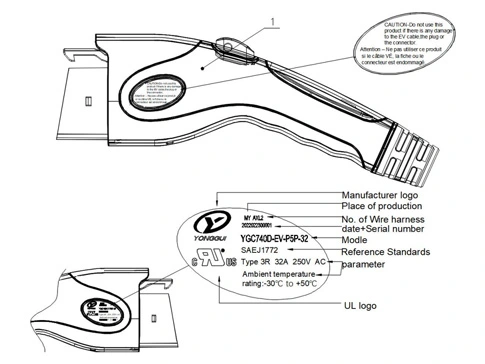

Certification mark

Specifications of AC Vehicle Connector (Type1)

Mechanical PropertiesLife Cycles≥10000 Cycles
Mating and Un-mating Force≤ 100N
Terminal Retention Force≥200N
Operation EnvironmentProtection LevelUnmatedIP44
MatedIP55
Environment Temperature Range-30℃~+50℃
MaterialHousingPA66 or PC
TerminalCopper alloy,Silver plated
SealingSilicone rubber or elastomer
Flammability RatingUL94-V0
StandardsSAE J1772-2012
