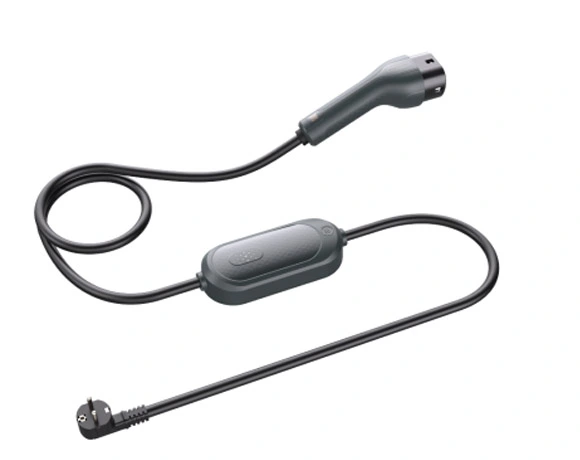

Portable EV Charging Connector TYPE2

1.  If the fault indicator light is often on or flashing, please refer to the LED light fault situation to make a fault judgment, and find the instruction manual for troubleshooting. If the fault cannot be removed, please contact the local dealer;

2. After the residual current action, please remove the plug and then plug it in to reset.

3. Charging Steps

(1) Before charging, turn off the power system in the car, switch gear to P gear, and apply the parking brake;

(2) Open the protective cover of the AC charging inlet of the vehicle。

(3) Take the product out of the storage position;

(4) Insert the three-wire plug into the power socket correctly;

(5) Remove the vehicle plug protection cover;

(6) Press and hold the latch button, insert the vehicle plug vertically into the AC charging socket until fully engaged, then release;

(7) Follow the vehicle's charging operation instructions to start charging;

(8) After charging, please wait for the charging device to disconnect the charging process, then press the card hook button and pull out the charging gun vertically;

(9) Pull out the three plugs from the power socket, arrange the cable, and put the product back into the storage area of the package or vehicle;

(10) According to the vehicle operation instructions, cover the socket protection cover, and complete the charging.

4. Storage Guidelines

(1) When not using this product, please keep the protective cover always covered on the gun head of the vehicle plug;

(2) After charging, please arrange the product and put it into the storage bag, or the established storage location of the vehicle;

(3) When storing this product, please place it in a dry and tidy position, do not approach the fire source or wet area.

5. Display feature requirements

The control status of the indicator light of the IC-CPD on the cable is shown in Table 1.

Table 1

6 .The indicator light controls the state priority

The LED control state priority is shown in Table 2

Table 2

7 .Precautions

(1) Make sure to use a 16A electrical outlet for charging

(2) It is forbidden to use extension cord, ground treasure, adapter, adapter and other accessories that are not part of the IC-CPD itself, unless the accessories are part of the IC-CPD;

(3) It is forbidden to short-connect the zero or fire line with the ground line;

(4) Please use the socket with good contact with the plug, find the plug and socket contact loose, please replace the socket immediately;

(5) It is only used in the environment with leakage protector at the power supply side;

(6) Do not charge when the charging cable is damaged;

(7) Please keep the plug and socket dry, do not use rain or water;

(8) If there is dirt or foreign matter on the surface of the plug/socket, clean up before charging;

(9) It is forbidden to disassemble the product without permission, and the product does not contain user maintenance parts;

(10) Do not touch the charging port when charging;

(11) During charging, it is forbidden to try to pull out the plug of the vehicle vigorously;

(12) It is strictly forbidden to start the vehicle without pulling out the plug of the vehicle;

(13) Do not tilt the charging plug out or shake it out, otherwise it may damage the charging plug and the vehicle charging socket;

(14) Allow the use of combined IC-CPD for charging; (Note: all parts should be provided by the original manufacturer, and should be returned to the original factory for repair after damage).
