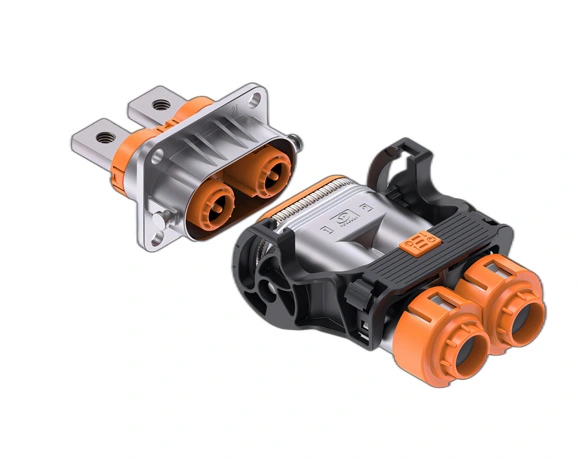

YG99C high-voltage shielded electrical connector is a newly developed high-performance product developed by our company in the market.
It has the characteristics of simp le operation, reliable performance, and simple appearance.
The product has functions such as secondary locking, high-voltage interlocking, anti-electric shock protection, 360-degree omnidirectional shielding, and independent waterproofing of the socket.
It can well meet the requirements for the use of electrical connectors for new energy vehicles.
It uses changes in the position of the keys to Achieve differentiation and foolproofing of different models, and meet the needs of multiple models of the same specification.
Parameters | Details | Values |
Electrical Performance | Rated working voltage | 1000 V （Power），24 V（Signal） |
| Insulation resistance | ≥ 500 M Ω (power), ≥ 500 M Ω (signal) (normal) | |
Withstanding Voltage | 3817 V DC (power), 1000 V DC (signal) | |
HVIL | Yes | |
Mechanical parameters | Mechanical life | 50 times |
Protection level | IP67&IP6K9K, IPXXB (unmatched state), the socket alone is IP67 | |
Working Environment | Working Temperature | -40℃～+125℃ |
Relative Humidity | 95％（at 40℃） | |
Flame retardant grade | UL94 V-0 |
