This product complies with the requirements of IEC 61851-1 , IEC TS61851-23-3 and IEC TS63379 for connection devices for conductive charging of electric vehicles ;
Overall protection level of connector: IP 54
The product has a novel appearance design, the shell is one-piece, the product conforms to ergonomics, feels comfortable to hold, and is easy to operate
Adopting integrated design and implanting the concept of Galaxy array to enhance product grade and design sense;
The internal structure of the product is simple in design, which simplifies the molding requirements to the maximum extent and meets the actual production needs;
The shell is made of Sabic's new advanced engineering plastic, which can maintain the stability and functionality of the product even in harsh operating environments.

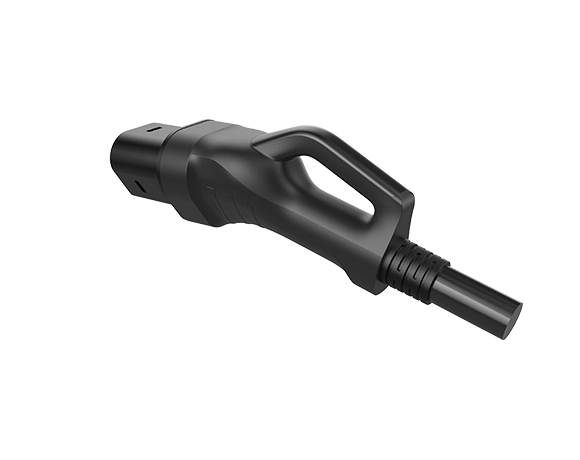

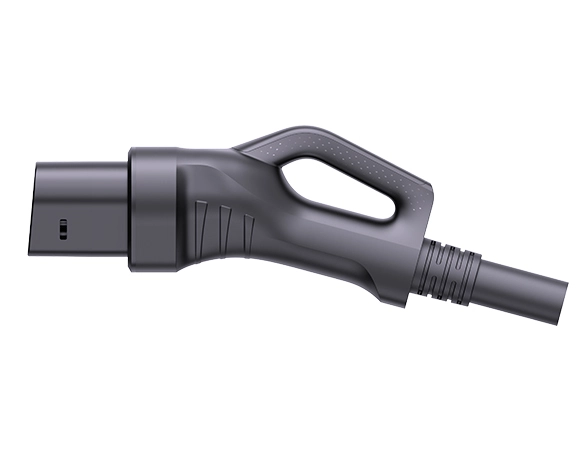

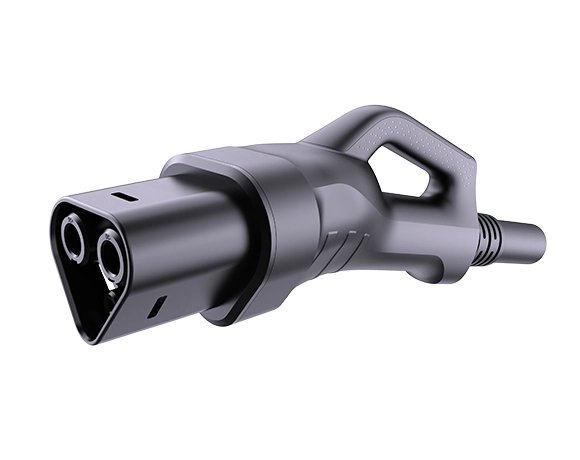

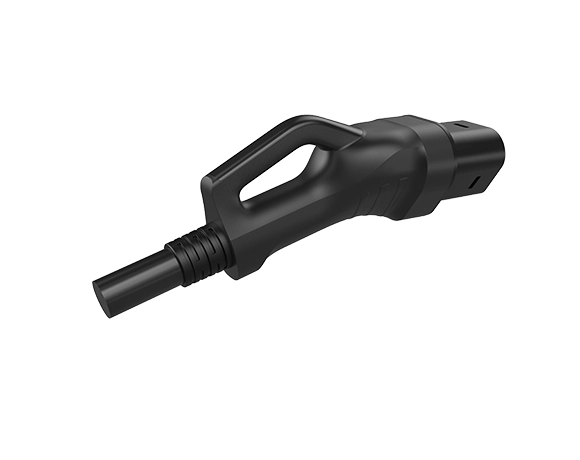

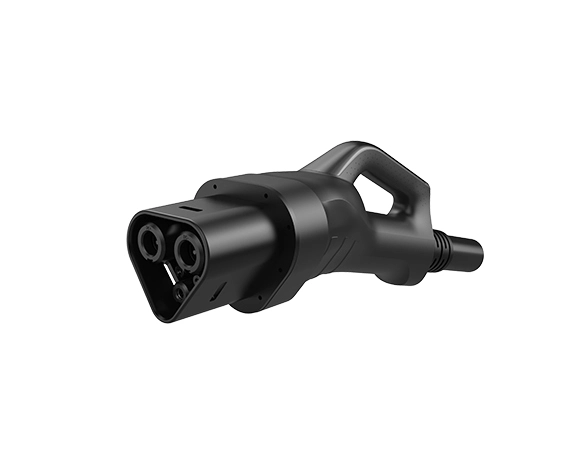

Product name | MCS Super (Liquid Cooling) DC Charging Cable |
Model | YG C- *** -EV-S7P- XXXX |
*** indicates the product model, XXXX indicates the current | |
Rated voltage | 1000V DC |
Current | DC: 1 000 A, 1500A (rated current) |
Signal: 10 A (max) | |
Contact | Power: 2 Ground: 1 Signal: 4 |
Working Environment | -35 ~ +50℃ (Do not use in condensation or freezing conditions) |
Use at altitudes below 2000m | |
Protection level | IP 5 4 |
Size | Charging connector: 395 (L)* 133 (D)* 121 (W) |
Cable: Length can be customized (customized length cannot exceed 5.5m) |
Note: The product complies with RoHS2.0 and REACH requirements
