Zhejiang Yonggui Electric Equipment Co., Ltd.

HDC-HE16-FC-MC Rectangular Connectors

These industrial connectors are designed for heavy duty applications, providing reliable and secure connections. With a weight of 0.06 kg, they are lightweight yet durable. The connectors have UL and CE certifications, ensuring their quality and safety. The female plug model (HDC-HE16-FC) features a cold pressed connection and a 16+PE configuration. It has a rated current of 16A and a rated voltage of 500V. The wire specification ranges from 0.14 to 4mm ². Made of polycarbonate in RAL 7032 color (egg lime), the connectors are both functional and aesthetically pleasing. The male plug model (HDC-HE16-MC) shares the same specifications and features as the female plug.

Part number:

Male: 113060100508

Female: 113060200496

Specifications of HDC-HE16-FC-MC Rectangular Connectors

Model

CodeWeight(kg)ULCEDescribe

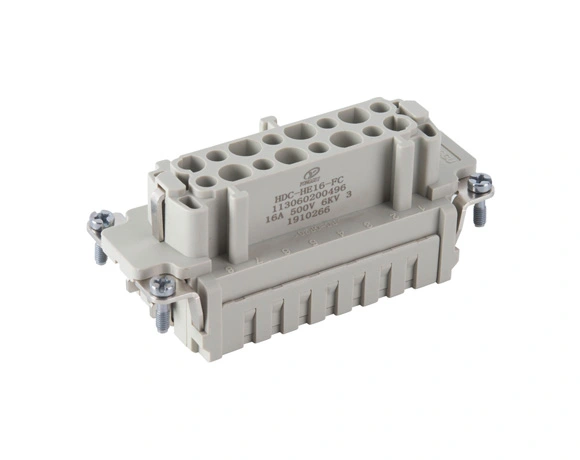

HDC-HE16-FC1130602004960.06

Female plug, cold pressed connection, 16+PE;

Rated current: 16A;

Rated voltage: 500V;

Wire specification: 0.14-4mm ²;

Polycarbonate: RAL 7032 (egg lime).

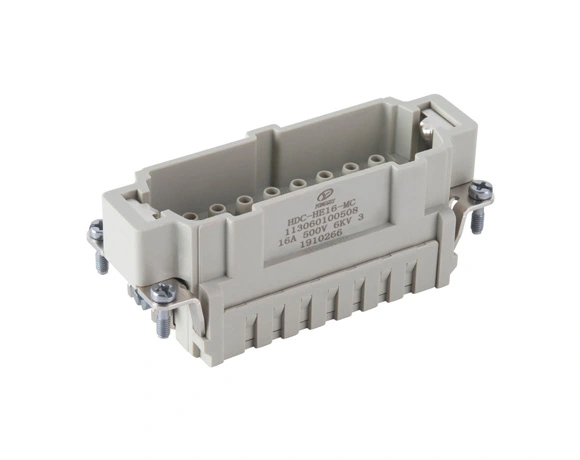

HDC-HE16-MC1130601005080.06

Male plug, cold pressed connection, 16+PE;

Rated current: 16A;

Rated voltage: 500V;

Wire specification: 0.14-4mm ²;

Polycarbonate, RAL 7032 (egg lime).
