ESC-TB250 Connector

  • Cable specification: 70mm²(Recommended to adapt to the copper bar20×3.5)(Adapter screw M8×18,Recommended torque 12N·m)

  • Termination Method: M8 Thread termination

  • Installation Method: M4 Screw

  • Installation Torque: 2±0.2N•m

  • Locking Methode: Spring locking

The Details of ESC-TB250 Connector

The Details of ESC-TB250 Connector

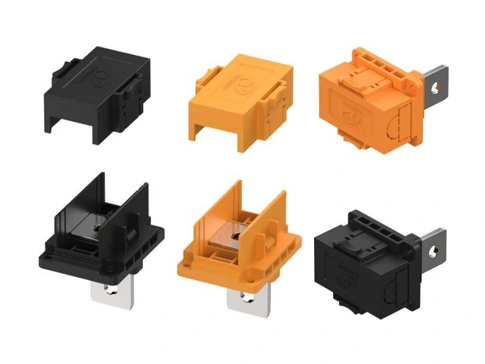

Product Outline

The Details of ESC-TB250 Connector

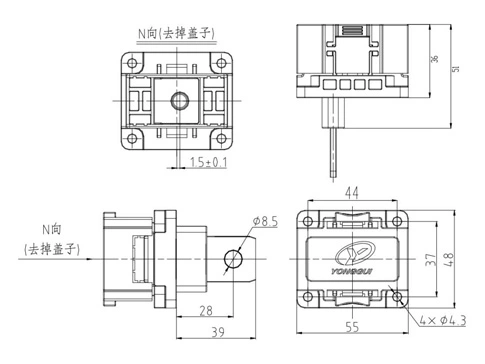

ESC-TB250-M8H-B/ESC-TB250-M8H-Y Outline Dimension

The Details of ESC-TB250 Connector

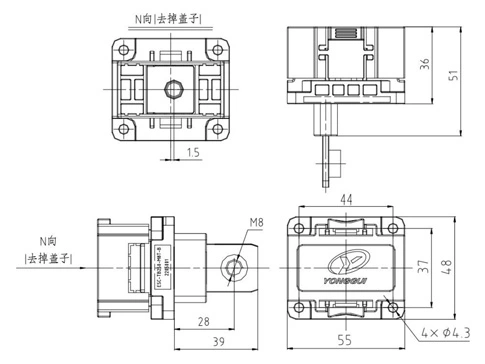

ESC-TB250-M8T-B/ESC-TB250-M8T-Y Outline Dimension

The Details of ESC-TB250 Connector

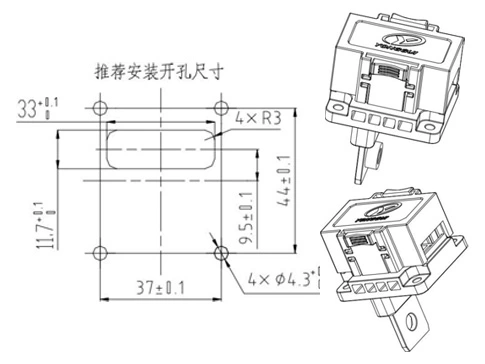

Installing Holes Dimension

Specifications of ESC-TB250 Connector

ParametersDetailsValues
Electrical CharacteristicPins1
Terminal specifications20×3.5
Rated Current250A(70mm²)
Rated Voltage1500V DC
Voltage Proof6800V DC
Insulation Resistance≥100MΩ
Temperature Rise≤45K
Mechanical CharacteristicProtection ClassIP20(Mated or Receptacle )
Material and FinishMaterialInsulator: Engineering plastics: Contact parts: Copper alloy
Surface TreatmentNickel
Environmental dataOperating Temperature-40℃~+125℃
Relative Humidity5%~95%
Vibration/ ShockQC/T 1067.1-2017 Vibration level V1


ESC-TB250 Connector Storage Condition

  • The battery storage connector should be uesd within the specification that provided, Install, use and maintain the products according to the documents.

  • Package: moisture-proof bubble bag and carton.

  • Storage Spec: The packaged products shall be stored in the warehouse within the temperature of -10 ℃~+ 40 ℃, relative humidity less than 80%, and no acid, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the production date.

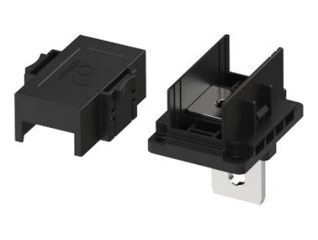

  • factory of esc tb250 connector

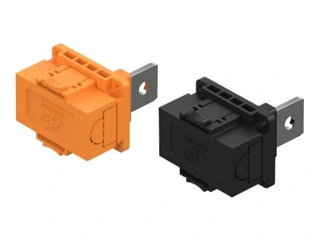

  • the production of esc tb250 connector

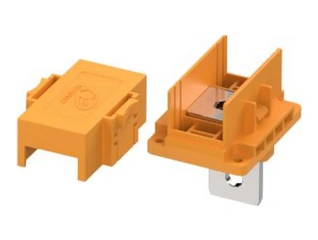

  • manufacturer of esc tb250 connector
