Zhejiang Yonggui Electric Equipment Co., Ltd.

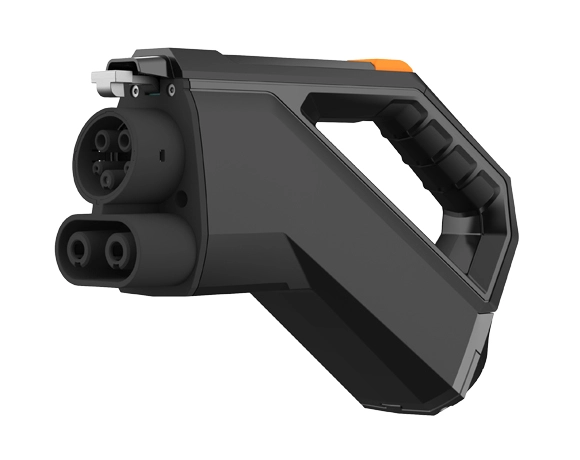

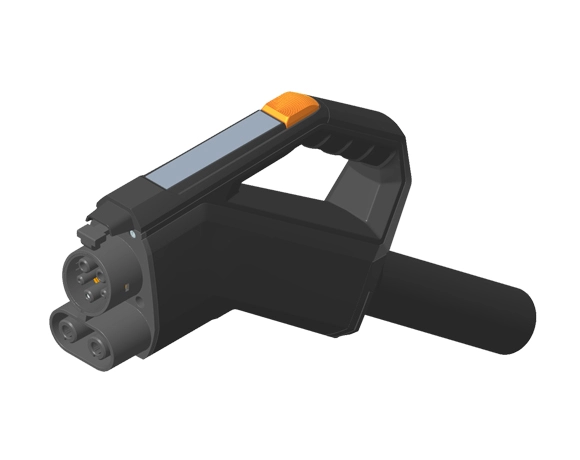

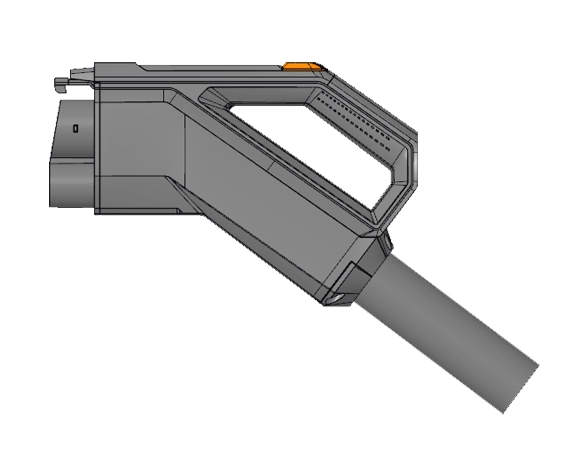

DC Vehicle Connector CCS1

Specifications of DC Vehicle Connector-CCS1

Technical Data Sheet

Item Specification

200A

300A

Execution Standard

SAE J1772

Charging Mode

Charging Mode 4

Rated Voltage

1000V DC

Rated current

200A

300A

Withstanding Voltage

1. 1.DC+,DC-/PE ≥3000V AC, leakage current≤10mA

2. DC+/DC- ≥3000V AC, leakage current ≤10mA

Insulation resistance

≥10M (1000V DC,1Min)

Protection Grade

UL Type 4

Insertion and withdrawal times

≥10000times

Insertion force

≤75N

Ambient temperature

-30℃~+50℃

Temperature Sensor

PT1000 * 2

Flame retardant grade

UL 94 V-0

Power contact surface plating material

Ag

Cable outer diameter

Ø28.3+/-0.8mm

Ø36.5+/-1.0mm

Cable structure

4x26.7mm2+1x3.31mm2+(2x0.824mm2)(CS)+2x2x0.824mm2(Black)

4x53.5mm2+1x3.31+(2x0.824)(CSCP)+2x2x0.824mm2(Black)
