Compressor/PTC connector-YGC1176

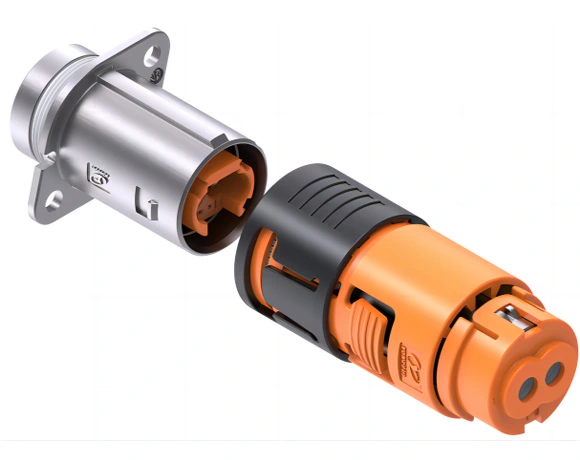

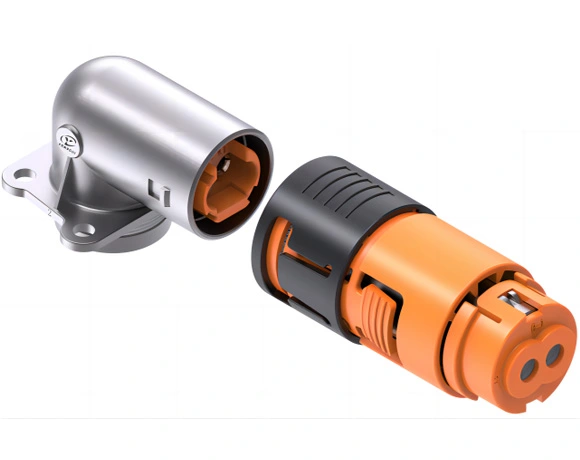

  • YG1176 series connectors with shielding and high voltage interlock function

  • The termination method is crimp type

  • The 2+2 core medium ø3 contacts can crimp up to 6mm2 cables

  • The connector housing has four types of mating keys: Type I, Type II, Type III, and Type IV

  • Note: The receptacles in the following table do not include pinhole parts, and high-voltage interlocking signal terminals are optional as needed.

Specifications of Compressor/PTC connector-YGC1176

Parameters

Details

Values

Electrical Performance

Rated operating current

40A (ø3 contact pair) 1A (signal terminal).

40A (suitable for 6 square cables, scattered cables are not recommended for the time being)

30A (for 4mm²cables)

20A(for 2.5mm² cables) 1A(for 0.5mm² cables)

Rated working voltage

800V AC (power), 24V (signal)

Voltage

3500V (power), 1000V (signal) 50Hz AC (normal)

Insulation resistance

≥3000M Ω (power), ≥1000M Ω (signal)

REST

Yes

Mechanical Parameters

Mechanical life

≥50 times

Protection level

IP67 & IP6K9K (headstand mating), IPXXB (unmated)

Working Environment

Working Temperature

-40℃~+125℃

Relative Humidity

95%(at 40℃)

Flame retardant grade

UL94 V-0
