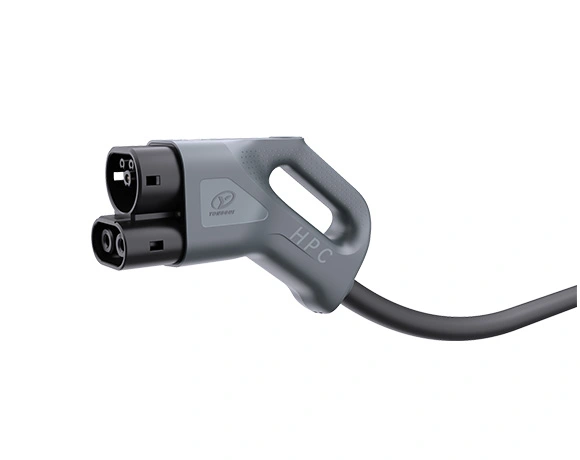

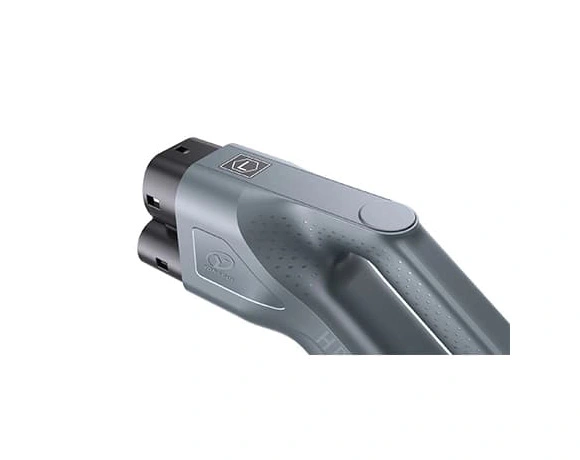

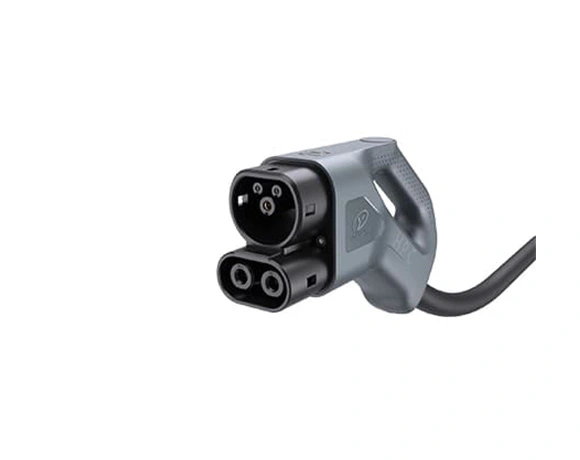

The CCS2 HPC DC Vehicle liquid cooling charging connector from Yonggui Connector is developed and designed strictly in accordance with the relevant standards of IEC62196 and has passed TÜV Mark/CE/CB certification. It is suitable for DC charging piles of corresponding standards in the European Union and needs to be used with the corresponding liquid cooling system.
The CCS2 HPC DC Vehicle liquid cooling charging connector adopts its own patented liquid-cooling structure, with a rated current carrying capacity of 600A, and can be further expanded, making it your best choice for extremely fast charging.

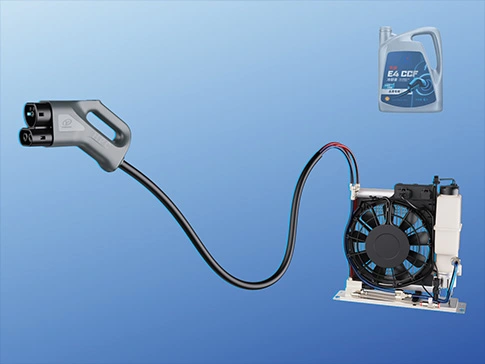

The CCS2 HPC DC Vehicle liquid cooling charging connector can be used with the liquid cooling module developed by Yonggui Connector in-depth customization. It is small in size, easy to install and stable in use.

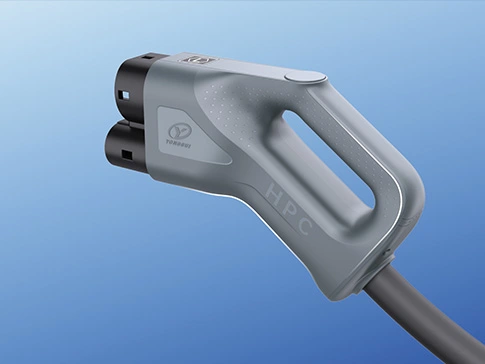

1. The curved complete tail cover and artistic product shape create a unique charm that breaks through tradition.

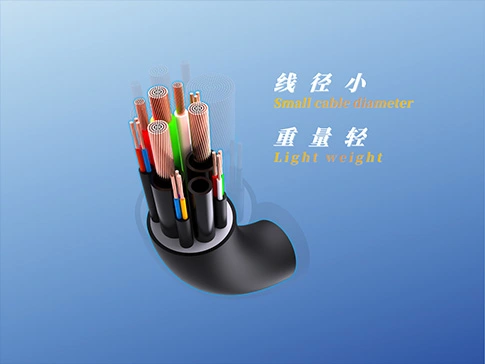

2. Lightweight liquid-cooled cable design brings a more convenient product use experience.

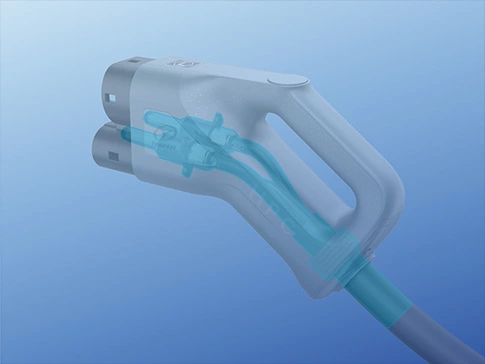

3. Independent patented liquid cooling structure, with more efficient heat dissipation performance.
4. It can be used with deeply customized matching liquid cooling modules and coolants for more stable use.
1. This product complies with the provisions of IEC62196.1-2022 , IEC62196.3-2022 , and IEC62196.3. 1-2022 for connection devices for conductive charging of electric vehicles ;
2. Overall protection level of connector: IP 54 ;
3. The product has a novel appearance design, the shell is one-piece, the product conforms to ergonomics, feels comfortable to hold, and is easy to operate;
4. After the contact is plugged and unplugged 10,000 times, the contact resistance and temperature rise meet the requirements of IEC62196.1-2022 ;
5. Adopting integrated design and implanting the concept of Galaxy Array to enhance product grade and design sense ;
6. The internal structure of the product is simple in design, which simplifies the molding requirements to the maximum extent and meets the actual production needs;
7. The shell is made of Sabic's new advanced engineering plastic, which can maintain the stability and functionality of the product even in harsh operating environments.
| Product Name | European standard DC charging cable CCS2 |
| Model | YG****A … …xxx |
| **** indicates rated current, ... indicates cable length, and xxx indicates No. | |
| Rated voltage | 1000V DC |
| Current | DC: 500A, 600A (rated current) |
| Signal: 2A (max) | |
| Contacts | Power: 2 Ground: 1 Signal: 2 |
| Work | -35~+50℃ (Do not use in condensation or freezing conditions) |
| Environment | Use below 2000m above sea level |
| Protection level | IP 5 4 |
| Size | Charging gun: 267(L)*74(D)*168.5(W) |
| Cable: Length can be customized (customized length cannot exceed 7 m) |
YG1403 series European standard DC vehicle connectors provide a rich range of product specifications, covering various current specifications. The liquid cooling series products not only greatly increase the charging speed, but also greatly reduce the weight of the charging connectors, bringing an extremely comfortable charging experience to the majority of users.
Tailoring connectors to your unique needs.
Provide systemic solutions
Respond to needs within 12 hours
