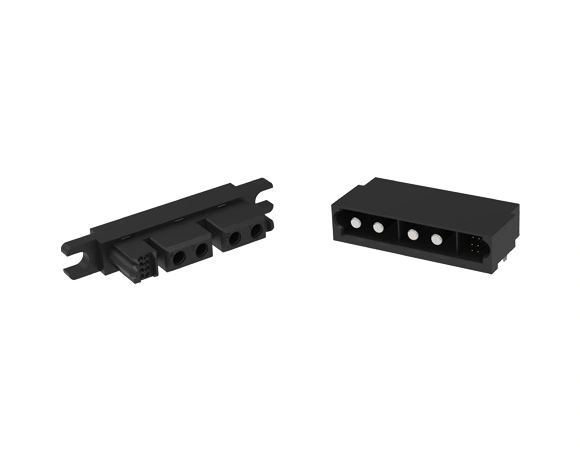

141030C Rectangular Connector

Name: 141030C Rectangular Connector
Brand: Zhejiang Yonggui Electric Equipment Co., Ltd.

The Yonggui 141030C Rectangular Connector is a high-quality solution for efficient and reliable electrical connections. With a rated voltage of 1000V DC (power) and 48V DC (signals), it accommodates diverse power supply needs. Featuring a rated current of 50A (power) and 3A (signals), low contact resistance, and high insulation resistance, the connector ensures optimal performance. Constructed with durable materials, it can withstand voltages up to 3000V AC and 500V DC. The telecommunication connector has a mechanical life of over 100 cycles, and it is packaged in a dry, moisture-proof box suitable for storage in warehouses with temperatures from -10 to +40°C and humidity below 80%RH.

 Get Free Quote  PDF Download

The Details of 141030C Rectangular Connector

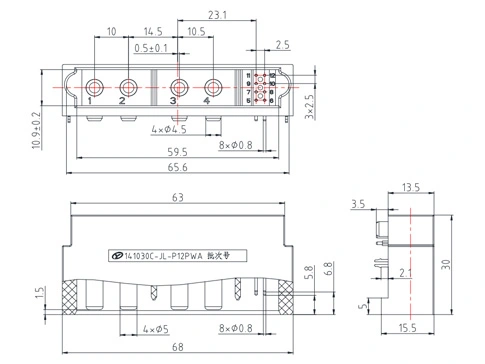

141030C-JL-P12PWA (Plug)

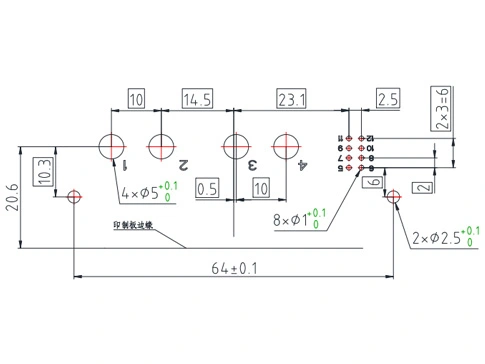

Recommended installation hole size

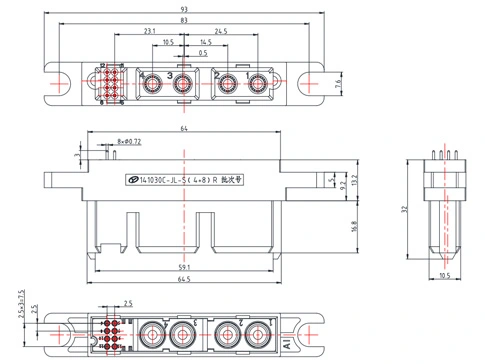

141030C-JL-S(4+8)R (Receptacle)

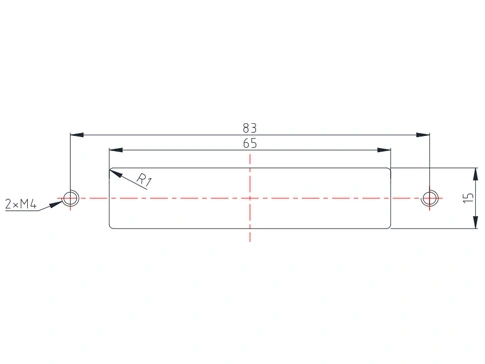

Recommended panel installation hole size

Specifications of 141030C Rectangular Connector

Parameters	Details	Values
Electrical Parameter	Rated voltage	1000V DC; Signal 48V DC
	Rated current	50A ; Signal 3A
	Contact resistance	Power supply≤1mΩ; Signal≤13mΩ
	Insulation resistance	≥3000MΩ (Normal temperature); Signal)≥3000 MΩ(Normal temperature)
	Withstand voltage	Power supply: 3000V AC (Sea level); Signal: 500V DC
	Mechanical life	≥100times
Other Parameters	Working environment	-55°C-125°C
	Connector core number	4 Power supply+8 Signal
	Terminal wiring	8AWG
Materials and surface treatment, etc	Fixing screws	Steel nickel plated
	Insulator	Engineering plastics ,BLACK, UL94V-0
	Contact member	Copper alloy（The power terminal is silver plated, and the signal terminal is gold plated）
	Harpoon	Copper alloy;（tin plating)

Storage Condition of 141030C Rectangular Connector

The packaging box containing the product should be packed in a dry, moisture-proof, dust-proof and mildew-proof packaging box. Products must be marked with product code, name, production date, inspection seal and other information. Packaged products should be stored in a warehouse with an ambient temperature of -10~+40°C, a relative humidity below 80%RH, and no acidic, alkaline or other corrosive gases in the surrounding air.
